Equipment function
Traditional laser marking can only mark stationary objects. The difference between flight marking is that products can flow continuously on the production line during the marking process,
Thus, the production efficiency is improved. Flight marking has a unique effect, and the mark can never be erased, so flight marking has strong anti-counterfeiting and anti fleeing characteristics,
It is widely used in biopharmaceutical, wine industry, electronic industry, national defense industry, building materials, business card printing, auto parts, food and beverage health products and other fields.
激光飛行打標速度快,生產效率高,無耗材,無污染,運行費用極低,本系列飛行打標是我公司針對包裝行業在線
噴碼而開發的高新技術產品。

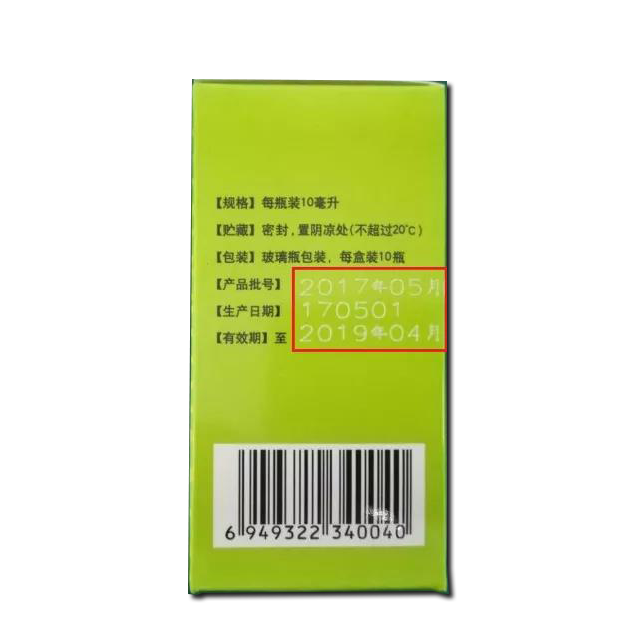

激光飛行打標可以為產品定制讀一無二的產品序列號,序列號標記后不可修改或擦除,能有效的起到防偽作用、有
效的阻止流通和銷售環節發生假冒偽劣和串貨等問題。設備操作簡單、應用領域比較廣泛、適用大多材料的打標。
1、速度快,是傳統機型的2倍以上;
2、作方便,光路全封閉免維護,穩定可靠;
3、用壽命長,泵源壽命10萬小時以上;
4、光器抗高反射,所有金屬都能標刻;
5、高精細度,分辨率達到2540dpi;
6、率輸出穩定,光束質量?jī)?yōu),采用風冷方式冷卻,機型小巧。
型號 | St-mpf-20w | St-mpf-30w |
最 大輸出功率 | 20w | 30w |
中心波長 | 1064 | |
重復精度 | <0.005mm | |
調Q頻率 | 20-100Khz | |
標記范圍 | 30mm×30mm-220×220mm | |
標記線速度 | <100m/min | |
最 小字符 | 0.5mm | |
冷卻方式 | 風冷 | |
最 小線寬 | 0.01mm | 0.02mm |
整機功率 | 750w | 850w |
